Bathroom Outlet and GFCI Placement: The Code Reference

Why bathroom outlet placement is written into code

A bathroom mixes the two things electricity likes least: standing water and bare skin. That is why the placement, count, and protection of bathroom outlets are not left to preference — they are spelled out in the electrical code and enforced at inspection. The rules exist to do two jobs at once: put a receptacle where you actually need one so you are not running an extension cord near a wet sink, and make sure that every one of those receptacles will shut off power the instant it senses a fault near water.

This guide is the reference for those rules: where an outlet is required relative to the sink, the GFCI requirement, the dedicated-circuit rule, and the height conventions the trade follows. It stays firmly on the code and on what a licensed electrician does — it is not a wiring how-to, and it deliberately contains no steps for connecting a receptacle, because that is licensed, permitted work. If your existing GFCI has failed or trips, that is a replacement question covered in replacing bathroom GFCI outlets; if you want to know what adding or upgrading circuits costs, see our bathroom electrical upgrade costs breakdown. Here we cover only where the code says outlets go and why a pro handles the placement.

The receptacle required near the sink

The core placement rule is about distance from the sink. The National Electrical Code requires at least one receptacle to be installed within 36 inches of the outside edge of each bathroom lavatory basin — in plain terms, an outlet within three feet of the sink, measured from the edge of the bowl. The intent is simple: the things people plug in at a bathroom sink (hair dryers, curling irons, electric razors, electric toothbrushes) should reach a nearby outlet on their own cord, so no one drapes an extension cord across a wet countertop.

Where two sinks share a wall, a single receptacle located between them can satisfy the 36-inch rule for both, provided it falls within three feet of each basin edge. A receptacle installed on the side or face of the vanity cabinet does not count toward this requirement in the standard interpretation — it has to be on the wall adjacent to the sink or otherwise positioned to meet the distance rule. An electrician lays these locations out against the finished vanity and sink positions, which is why receptacle placement is coordinated with the cabinet and countertop plan, not decided after the fact.

The GFCI requirement

Every 125-volt, 15- and 20-amp receptacle in a bathroom must be protected by a ground-fault circuit interrupter — a GFCI. A GFCI constantly compares the current flowing out on the hot conductor with the current returning on the neutral; if it detects even a few milliamps leaking to ground, as it would if a plugged-in appliance fell into a filled sink or contacted a wet hand, it disconnects power in a fraction of a second. That speed is what turns a potentially fatal shock into a nuisance trip. The Consumer Product Safety Commission credits GFCI protection with a large drop in electrocutions in and around the home since it became standard.

Protection can be delivered two ways, and both satisfy code: a GFCI receptacle installed at the outlet itself, or a standard receptacle wired downstream of and protected by a GFCI device or a GFCI breaker at the panel. Which approach an electrician chooses depends on the circuit layout. What is not optional is the protection — an ordinary, unprotected receptacle is not permitted anywhere in a bathroom. This is also why a GFCI that will not reset, or one that trips repeatedly, is a signal to have the circuit looked at rather than swapped blindly.

The dedicated circuit rule

Bathroom receptacles are fed by their own circuit, not shared with the rest of the house. The National Electrical Code requires at least one 20-amp branch circuit to supply bathroom receptacle outlets, and in the common arrangement that circuit serves only receptacles — it does not also power the room lighting, the exhaust fan, or outlets in other rooms. A hair dryer pulls a lot of current, and a dedicated 20-amp circuit keeps it from tripping a breaker shared with lights or overloading a circuit doing several jobs.

There is a specific allowance in the code: a single 20-amp circuit can serve the receptacles in more than one bathroom, or one bathroom’s circuit can also feed that same bathroom’s other loads under defined conditions — but you cannot mix "serves multiple bathrooms" with "also runs lights and a fan." These are the details a licensed electrician sizes and lays out from the panel, accounting for the total load the bathroom will carry. Older Treasure Valley homes, especially builder-grade houses from earlier decades, were frequently wired before these dedicated-circuit rules were current, which is one reason a remodel is the natural time to bring the electrical up to today’s adopted code.

Height and layout conventions

Unlike the distance-from-sink rule, the height of a bathroom outlet is largely a workmanship convention rather than a fixed code number. The common practice is to set countertop receptacles about 4 inches above the finished counter, so the outlet clears the backsplash and cords fall neatly behind small appliances. Outlets integrated into a vanity or medicine cabinet, and USB or charging receptacles, follow the same logic — placed where the device that uses them naturally sits.

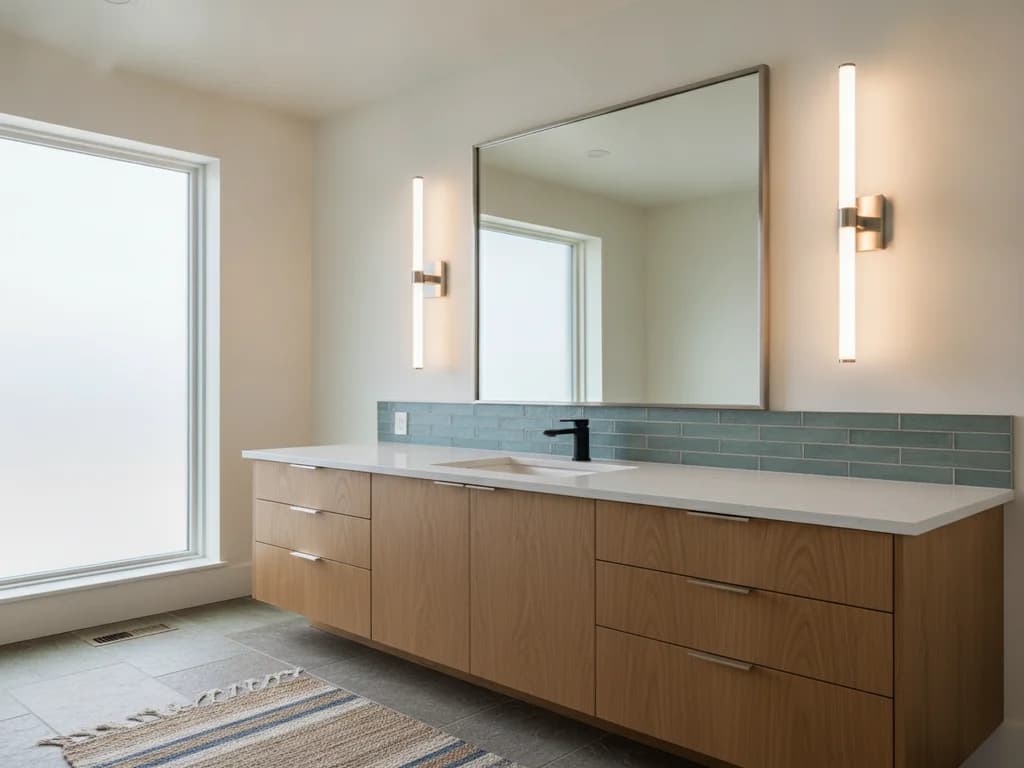

Layout is also where good design and code meet. An electrician coordinates outlet locations with the vanity, the mirror, and especially the lighting, so a plugged-in razor or a lighted mirror has power without a visible cord run — planning that dovetails with getting the vanity lighting for the makeup mirror right, and with any smart bathroom technology like heated mirrors, bidet seats, or smart toilets that need a nearby protected receptacle. Get the receptacle plan and the fixture plan drawn together and the finished bathroom has power exactly where you reach for it, with nothing improvised later.

Why a licensed electrician handles the placement

Bathroom electrical work sits squarely in licensed, permitted territory. In Idaho, electrical work is regulated by the state’s Division of Occupational and Professional Licenses, and installing or altering bathroom circuits is done by a licensed electrician and inspected — it is not a homeowner wiring project, and it is not something a general remodeler should freelance without the right license. The reason is not bureaucratic: the failure modes of wrong wiring near water are shock, fire, and a GFCI that looks installed but is not actually protecting anything.

A licensed electrician does several things a checklist cannot: verifies the receptacle-near-sink and GFCI requirements against the code version your city has adopted, sizes and lays out the dedicated 20-amp circuit from the panel, confirms the panel has capacity for the added load, and coordinates it all with the finished layout — then the work is permitted and inspected. On a bathroom remodel, this is folded into the project rather than bolted on, so the walls are wired correctly before tile and the receptacles land exactly where the code and the design both want them. The table below summarizes what is a firm code requirement versus a convention, so you know which numbers are negotiable and which are not.

The bathroom outlet and GFCI reference table

This table separates the code requirements from the workmanship conventions and points to the governing standard. The receptacle-near-sink, GFCI, and dedicated-circuit rows are code; the height row is convention. Always verify the specific figures against the code version adopted by your Treasure Valley jurisdiction at permit, since local amendments and code cycles can shift details.
