Shower Waterproofing Cost: Liquid, Sheet, and Foam Board Tiers

How shower waterproofing is actually priced

Shower waterproofing is not usually a job you can buy on its own — it is a stage inside a tiled shower build, sandwiched between demo and tile. That is why most national guides price it as a line item: This Old House puts waterproofing and backer board at $800–$1,500 within a walk-in shower project.

The corollary matters more than the number: because the membrane lives under the tile, you cannot add or fix waterproofing without removing the surface above it. When waterproofing has failed, the real cost is the rebuild it forces — HomeAdvisor puts a shower remodel at roughly $3,000–$10,000 nationally. The $800–$1,500 stage is cheap insurance against the $3,000–$10,000 event.

This article covers what the stage costs and how the three system tiers change it. How each system actually works — and what a correctly waterproofed assembly looks like — is the subject of our full shower waterproofing guide.

The three system tiers compared

Every modern waterproofing approach falls into one of three families, and they ladder up in material cost:

A liquid-applied membrane — RedGard from Custom Building Products is the household name — is rolled or troweled over cement backer board like thick paint, curing into a waterproof skin. Lowest material cost of the three; quality depends on applying the specified thickness in the specified coats.

A sheet membrane — Schluter’s Kerdi is the reference product — is a polyethylene fabric bonded to the walls in thinset, with seams, corners, and pipe penetrations built from pre-formed pieces. Materials cost more than liquid, and the result is a factory-consistent membrane thickness everywhere.

A foam board system — wedi panels or Schluter’s Kerdi-Board — replaces the backer board entirely with waterproof structural foam panels, so the wall goes up and is waterproof in one step. Highest material cost per square foot, partially offset by skipping the separate backer layer and its labor.

Why the tier matters less than you think — and the installer more

Here is the honest cost insight: labor dominates this stage. The material gap between a liquid membrane and a foam board system on a single alcove shower is a few hundred dollars — real money, but small against the labor to prep, apply, seal, and flood-test any of them, and trivial against the cost of a failure.

Every one of these systems works when installed to its manufacturer’s spec, and every one fails when it is not — a liquid membrane rolled too thin, a sheet seam without proper overlap, a foam board joint left unsealed. Tile industry method standards from the Tile Council of North America exist precisely because the assembly, not the product, is what keeps water out of the framing.

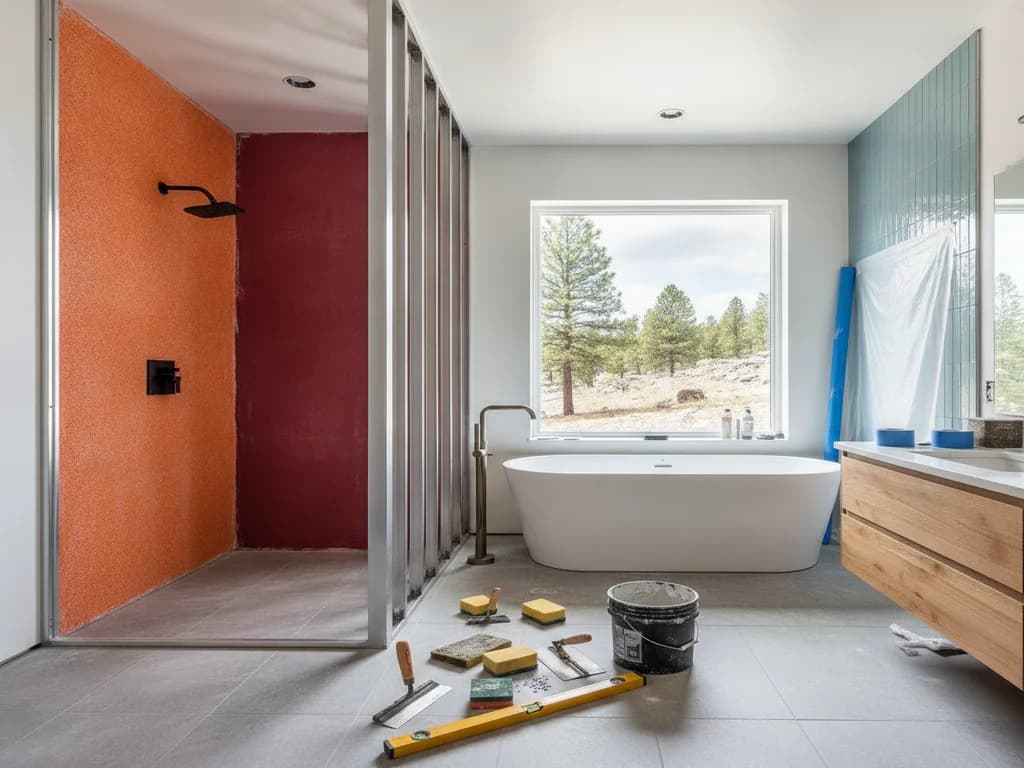

If you are weighing the two most common head-to-head options, our Schluter vs. RedGard comparison covers where each system genuinely wins — this article stays on what they cost.

What moves the waterproofing number

Within and beyond the $800–$1,500 national stage range (This Old House), these factors decide where your project lands:

• Shower size and height — waterproofing is priced by area, and full-height or oversized showers carry more membrane and more labor than a standard alcove
• Steam showers — a steam enclosure must be waterproofed and vapor-managed on every surface including the ceiling, pushing the stage well past standard-shower numbers
• Curbless entries — extending the waterproof field out onto the bathroom floor adds membrane area and slope work at the transition
• Niches, benches, and windows — every built-in is a set of seams and corners that must be detailed; each adds labor to the stage
• What is being tied into — new waterproofing that must integrate with an existing pan or partial assembly takes more detailing than a clean full rebuild
• Backer condition — if demo reveals damp or crumbling backer and framing, the prep bill precedes the waterproofing bill

When waterproofing has already failed

If you are reading this because of a ceiling stain below the bathroom, recurring grout cracks, or a musty smell that cleaning never fixes, the budget conversation changes: you are not pricing a waterproofing stage, you are pricing the rebuild that includes one. HomeAdvisor’s national range for that project is roughly $3,000–$10,000 depending on tile and scope.

What failure looks like, how it is diagnosed, and what the tear-out involves is covered in our guide to replacing shower waterproofing. The one thing to internalize from the cost side: moisture that keeps returning after regrouting and recaulking is a membrane problem, and every month it runs adds subfloor and framing repair to the eventual bill.

Waterproofing and the shower pan

The pan is the other half of the waterproof assembly — the membrane on the walls has to lap over a sound pan, or the system leaks at the joint no matter how good each half is. If the pan is original and the walls are being rebuilt, replacing both at once is usually the honest scope; the pan side of that budget is covered in our shower pan replacement cost breakdown.

This is also why waterproofing quotes vary between bidders on the same shower: some are pricing a wall membrane over the existing pan, others are pricing the full continuous assembly. Make sure you know which one you are comparing.

Getting a real number for your shower

National figures put the waterproofing stage at $800–$1,500 (This Old House) inside a tiled shower build — but your number depends on your shower’s size, its built-ins, and whether anything has already failed behind the tile. Boise Bath provides fixed-price quotes through a free in-home estimate, with the waterproofing system, pan tie-in, and tile scoped as one assembly. For a whole-project starting point, our bathroom remodel cost calculator is the fastest first pass.
